  • Orbital 3000 Drying Shaker with Sump

This page shows many beneficial and unique features of VFSI's Orbital 3000 sump type drying shaker. Look and see why VFSI's Orbital 3000 excels in performance, reliability, and durability.

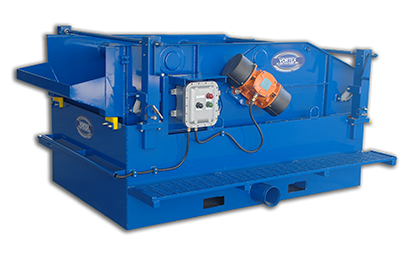

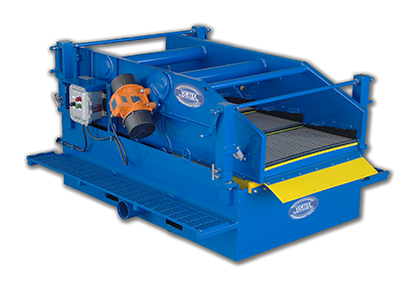

The Orbital 3000 sump shaker shaker weighs 3950 lbs and is 116" long and 92.75" wide. The vibrators extend another seven inches on each side.
Toolbox
Click to view the Orbital 3000 drying shaker with sump specification sheet.

The Orbital 3000 sump drying shaker uses elliptical motion for extended screen life and excellent conveyance. The large screen area of 30 ft2 and high g forces of 6.9 g’s result in exceptional performance. Shaker performance can be characterized by the product of screening area and g's. The Orbital 3000 run at 6.25 g's, provides 188 ft2-g's. This is one of the largest performance ratings in the industry.

All baskets are fully seal welded and stress relieved. Seal welding reduces corrosion, adding years to machine life. The Orbital 3000 pretension screening machine requires minimal maintenance, even in oil based muds.

Two layers of powder coat. Baked on zinc-rich epoxy first coat provides corrosion resistance. Final coat provides abrasion resistance. Most fasteners are stainless steel, providing excellent corrosion resistance.

The Orbital 3000 is exceptionally quiet, due to efficient isolation, orbital motion and a sturdy base. With the machine running, it is possible to stand a nickel on edge at each corner of the machine.

Below are some of the benefits of Vortex Fluid Systems Orbital 3000 shaker.
Toolbox
30 ft2 of screening area
Toolbox
high performance
Toolbox
competitively priced
Toolbox
dependable and durable
Toolbox
low maintenance
Toolbox
convenient cement bypass
Toolbox
minimal operational costs
Toolbox
simplification of rig move
Toolbox
vibration isolation
Toolbox
minimal noise
Toolbox
simple to adjust screen angle

Toolbox

The Orbital 3000 comes with a tool box. This box contains equipment for operation and basic maintenance of the Orbital 3000 shakers and Italvebras vibrators.
Toolbox
wedge block installation tool
Toolbox
vibrator grease
Toolbox
allen wrench set
Toolbox
1/4" metric deep socket set
Toolbox
extra isolator
Toolbox
The explosion proof electrical box is powder coated, has an “O” ring seal on the door and rubber boots on the switches. Customer wiring consists of hooking power to the terminal strip.





Toolbox
The grated walkways on each side of the unit keep the operator “out of the mud” and provide a convenient height to change screens and monitor performance.



Toolbox
Stainless steel spring isolators provide superior isolation and corrosion resistance. An Orbital 3000 resting on flat concrete will not “walk”.



Toolbox
The Italvebras vibrators are exceptionally durable. The Italvebras vibrators are capable of delivering 6.9 g’s of vibration to the Orbital 3000.



Toolbox

The angle of the screen basket can be adjusted from 1 to 5 degrees from either side using a hand crank.







Toolbox

Durable polyurethane wedge blocks hold screens securely in place. Manufactured with a steel insert for increased rigidity.
